15,185 lbs
-
Sleeps 8
-
3 slides
-
Outdoor KitchenLoft

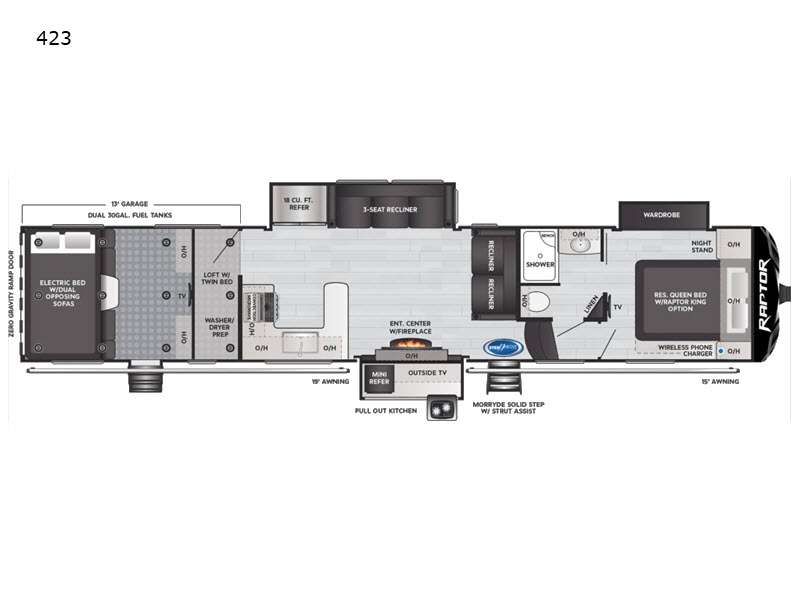

423 Floorplan
Specifications
| Sleeps | 8 | Slides | 3 |
| Ext Height | 13 ft 6 in | Hitch Weight | 3390 lbs |
| Dry Weight | 15185 lbs | Cargo Capacity | 3815 lbs |
| Fresh Water Capacity | 94 gals | Grey Water Capacity | 82 gals |
| Black Water Capacity | 44 gals | Tire Size | ST235/80R16G |
| Furnace BTU | 35000 btu | Fuel Capacity | 60 gals |
| Number Of Bunks | 1 | Available Beds | Queen |
| Refrigerator Type | Stainless Steel | Refrigerator Size | 18 cu ft |
| Convection Cooking | Yes | Cooktop Burners | 3 |
| Number of Awnings | 2 | Axle Weight | 7000 lbs |
| Garage Size | 13 ft | LP Tank Capacity | 30 lbs |
| Water Heater Type | On Demand | TV Info | BR LED TV, Garage 40" Pull-Down TV, Ext. TV |
| Awning Info | 15' and 19' Electric with LED Lights | Axle Count | 3 |
| Washer/Dryer Available | Yes | Number of LP Tanks | 2 |
| Shower Type | Shower w/Seat | Electrical Service | 50 amp |
| VIN | 4YDF42338MR800611 |
Description
Keystone Raptor toy hauler 423 highlights:
- Outdoor Kitchen
- 13' Separate Garage
- Fireplace
- Electric Bunk
- Loft with Twin Bed
- Exterior TV
You will have everything you need after your hikes, dirt bike rides, and family walks around the campgrounds when you have this Raptor toy hauler! From the outdoor kitchen and TV, the fuel tanks, and the two electric awnings with LED lights, to the queen-size bed and the double-entry bathroom, there is comfortable camping throughout. The main living area offers seating with recliners for five, and the U-shaped kitchen countertop allows you to make meals without having to move for anyone walking around. The garage provides sleeping space for four with opposing sofas and an electric bunk, and there is a space prepped for a washer/dryer, overhead cabinets, and much more!
The Keystone Raptor toy hauler has rugged flexibility that will entice any adventurer! The Raptor's sophisticated design makes it an attractive choice for anyone, and the hardworking innovation makes it suitable for all thrill-seekers. No matter who you are, the Raptor has something that you'll love, like the wireless phone charging station, on-board fuel station, Zero Gravity ramp door, Onan 5,500W gas generator, and Furrion wireless back-up camera. The heated and lighted pass-through storage area gives you an additional space to place your gear, and the outside shower allows you to rinse off your toys or muddy boots before coming inside. The Raptor also has a few Keystone-exclusive features, like the Tru-fit slide construction, KeyTV, and Tuf-Lok thermoplastic duct joiners.
Features
Standard Features (2021)
Keystone Exclusives
- Color-coded unified wiring standard
- 4G LTE and Wi-Fi prep
- Tuf-Lok™ thermoplastic duct joiners
- KeyTV™
- In-floor heating ducts
- Tru-fit™ slide construction
Exterior
- 10" I-Beam frame (select models)
- 12" I-Beam frame (select models)
- MaxTurn™ Technology w/ Rota-Flex™ pin box
- Hitch Vision™ w/ LED lighting
- High-gloss exterior, laminated sidewalls w/ double-welded aluminum construction
- Frameless tinted safety glass windows
- Frameless dual-pane windows (optional)
- Painted fiberglass cap w/ patented Key Shield™ protection & LED lighting
- Radius roof w/ 5" pre-engineered roof trusses and walkable rafters
- 1-piece Alpha Super Flex TPO membrane (18-year limited warranty)
- Exterior ladder
- Norco BAL® Accu-Slide™ expandable room system
- Dexter® E-Z Lube® 7,000 lb. axles w/ 12" x 2" self-adjusting electric brakes
- MORryde CRE3000 suspension w/ wet bolts
- G-rated tires (6-year warranty) w/ spare tire
- 6-point hydraulic leveling system
- 78" entry door w/ euro latch
- MORryde® Step Above™ w/ strut assist
- Heated and lighted pass through storage w/ 1" slam-latch doors
- Furrion® wireless backup camera
- Battery quick-disconnect
- Convenience center (single-point for all system hook-ups)
- Onan 5,500 watt gas generator (standard) w/ 30-gallon fuel tank
- 106 gal. fresh, 82 gal. gray, 82. gal. waste water tanks
- Outdoor kitchen
- 50 Amp service
- Outside shower- hot & cold w/ 25' coil hose
- One-touch electric awnings w/ LED lights (2)
- Solar-panel prep on roof
- 265 watt solar panel w/2,000 watt inverter (optional)
Interior
- Designer style vinyl flooring throughout
- 8' tall living room and kitchen slides
- Single, pull-down window shade
- Designer upholstered window valances
- Gray farmhouse, hardwood cabinetry
- Thomas Payne® furniture equipped w/ heat, massage, & LED lights
- Hardwood ceiling treatment w/ LED accent lighting
- Fireplace
Kitchen Features
- Soft-close hardwood cabinetry w/ hidden hinges, 100 lb. full extension ball-bearing drawer glides
- Solid-surface countertops w/ LED infused backlighting
- Large farmhouse style stainless steel kitchen sink w/ roll-up sink cover/drying rack
- Upgraded residential pull-out kitchen faucet
- Portable multi-use table
- Free standing dinette table & chairs
- MORryde® flip-up bar stools (select models)
Appliances & Utilities
- (2) 30 lb. LP tanks w/ quick disconnect
- Omni-Chill™ 3/4 ton high efficiency (3) A/Cs
- Omni-Chill™ 3/4 ton high efficiency (2) A/C's
- 35,000 BTU gas furnace
- On-demand water heater
- 50" LED TV w/ premium surround sound
- Outdoor TV (select models)
- PolarMax™ 18 cu. ft. stainless steel refrigerator
- Stainless steel residential refrigerator (optional)
- 30" stainless steel convection mircowave
- 3-burner range and 22" stainless steel oven
- Washer/dryer prep
- LED lighting throughout
- iN-Command® smart automation system
Bathroom Features
- Pressed countertops
- Fiberglass 1-piece shower surround, removable shower head, built-in skylight
- Porcelain foot flush toilet
Bedroom Features
- 60" x 80" queen bed (select models)
- 68" x 76" king bed (select models)
- LED overhead reading lights
- Outlets/USB on both sides of bed
- Wireless phone charging station (select models)
- Decorative bedspread & tufted pillows
- LED TV in bedroom
Weather Protection
- Extreme Temperature package
- Heated, insulated, enclosed holding tanks
Safety
- Breakaway switch
- GFI receptacles
- Carbon monoxide detector
- Smoke detector
- Propane gas leak detector
- Fire extinguisher
Garage
- Dyna Span® 1-piece floor decking (25-year warranty)
- 5,000 lb. frame welded tie-downs
- Glass door w/ vapor seal
- MORryde® Zero Gravity™ ramp door Patio steps (standard) w/ 1,500 lb. support legs
- Rear-ramp patio w/ electric awning & side-entry steps (optional)
- Three seasons patio door (optional)
- Half-bath (select models)
- 3rd A/C prep & ducted heat into garage
- 3rd Omni-Chill™ A/C & ducted heat into garage
- On-board fuel station (60-gal capacity)
- Ram air ventilation system
- Hardwood angled-cabinets w/ 40" pull-down TV in garage
- HappiJac® bed w/ flip down sofas
Please see us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
